Horse stalls
Fronts

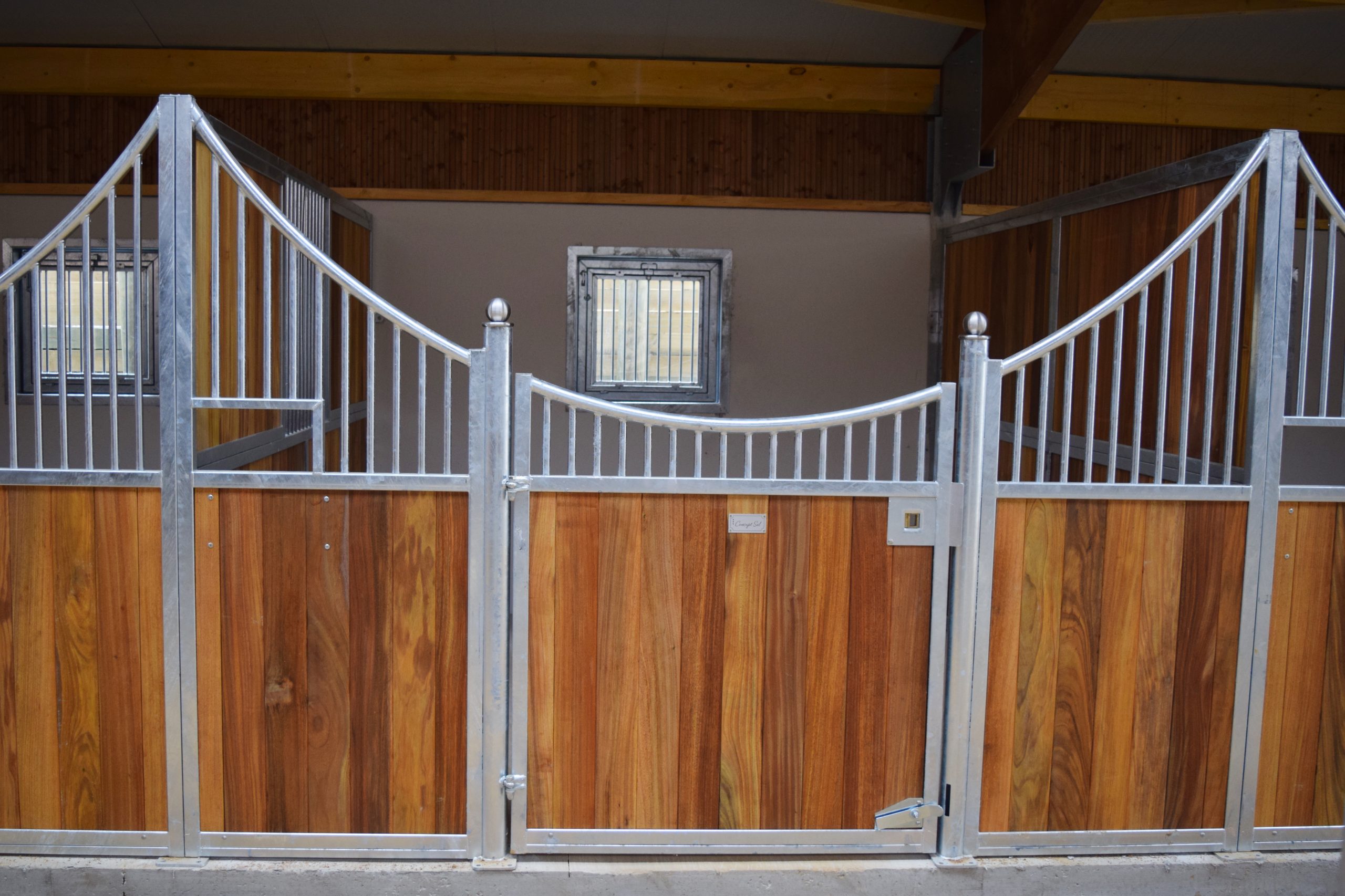

System 50 is the ideal choice for those who appreciate comfort and safety at the best price. This system offers a wide range of models so that we can choose exactly the one our stable needs. Each model can be further adjusted to individual needs. We can find models with both sliding and opening doors, equipped with a handy automatic lock and in the price with a bottom slider with a stainless steel knob, which guarantees that it will last for many years in harsh conditions. Also check out our other 80, 90 and 114 front systems.
Posts 50×50 mm; tubes ½” (21,3 mm)
Gallery

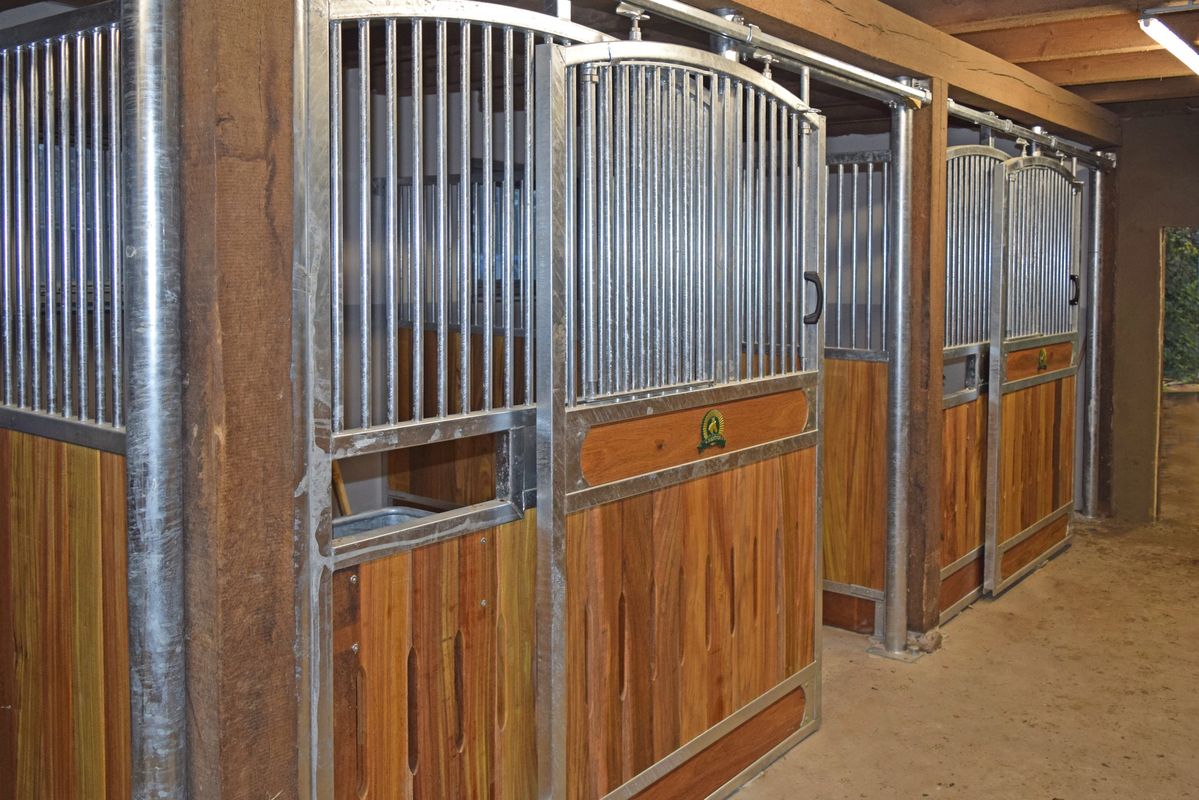

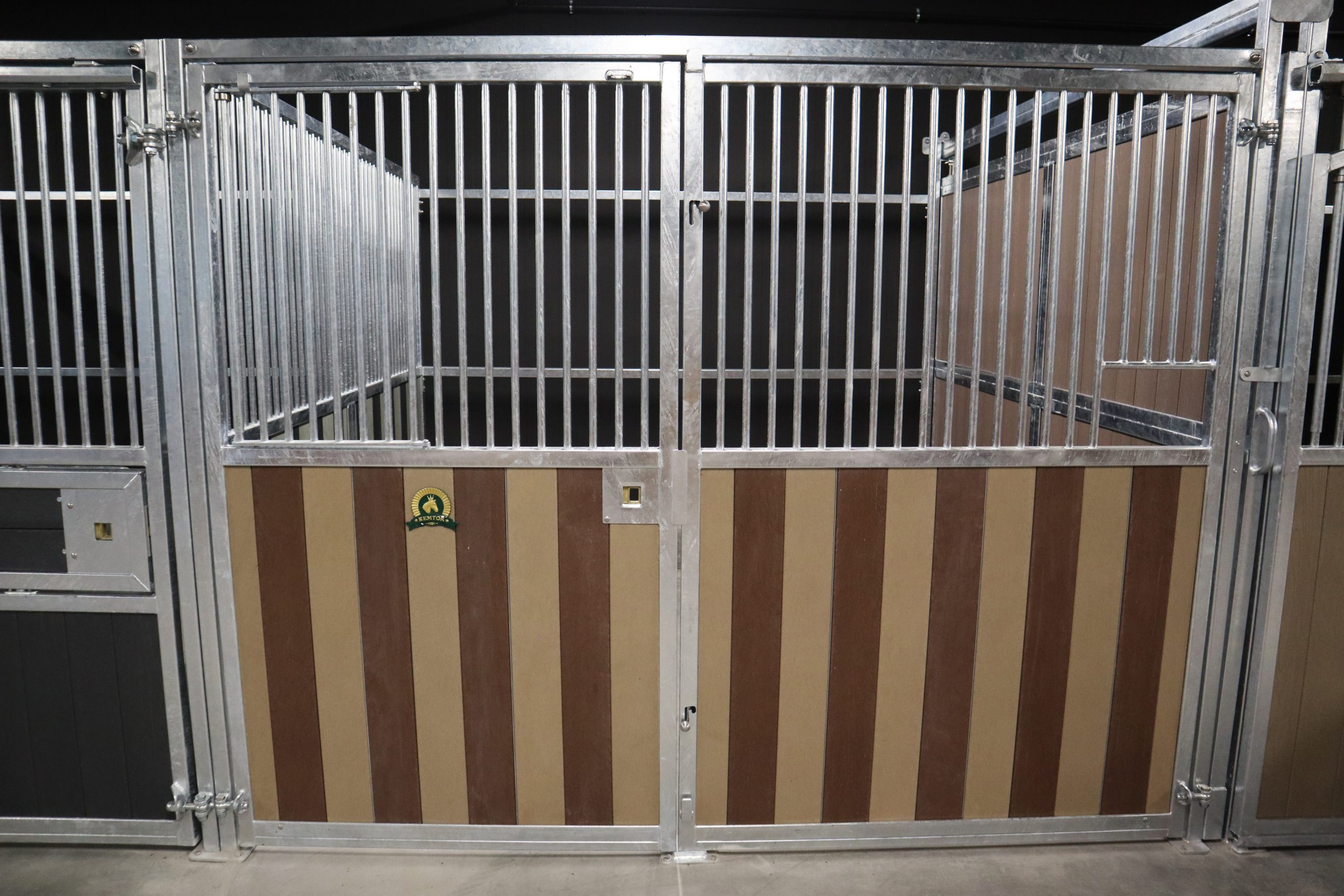

System 80 is a system that combines elegance and affordability. The interior posts of the fronts are made of 80x80mm square tubes, which gives them a dignified appearance. This system is often installed in our stables because it perfectly matches the posts supporting the roof which are also square.
Posts 80x80mm; tubes ½” (21,3 mm)
Gallery
Gallery

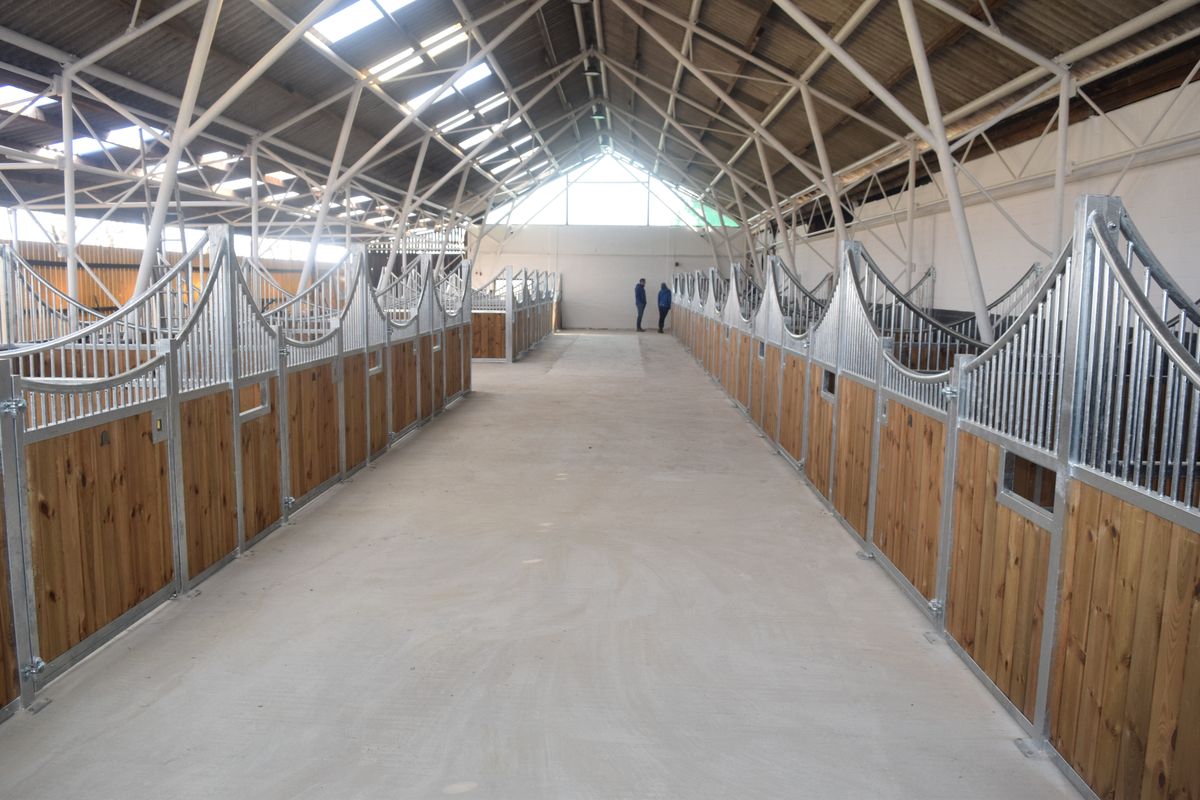

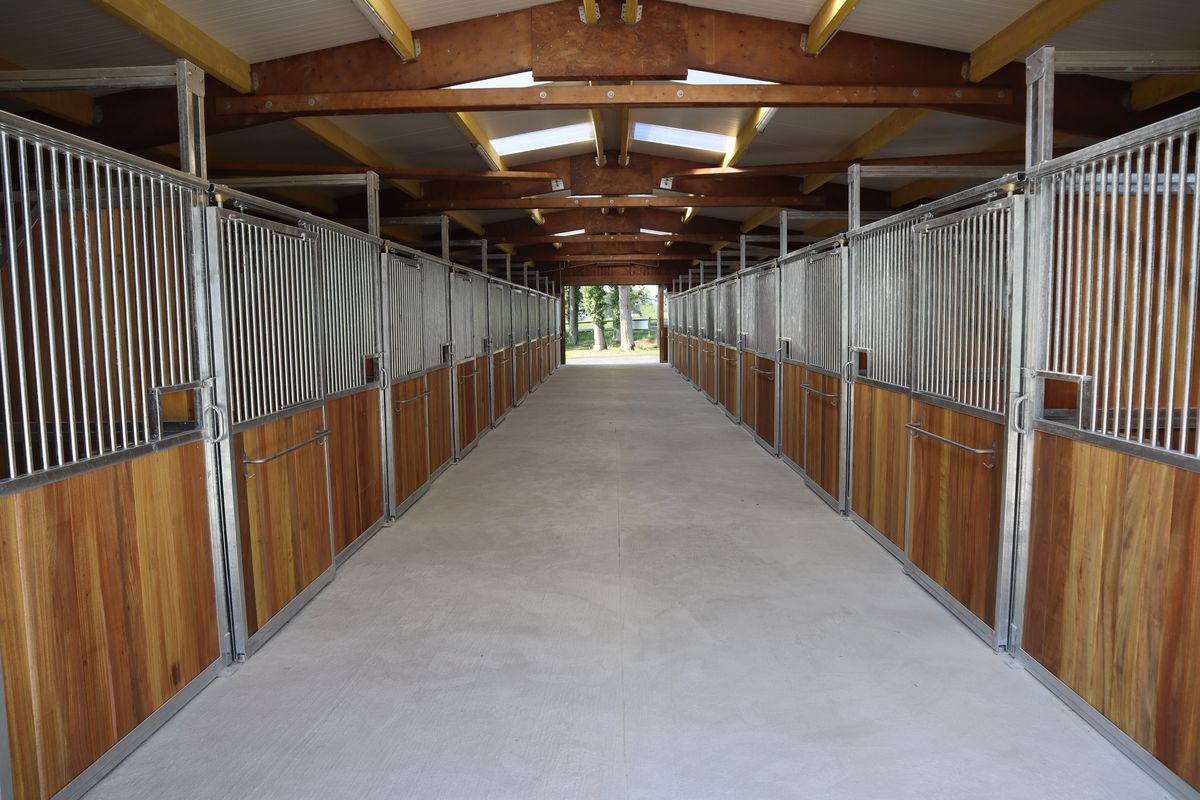

The 90 and 114 systems are ideal for stables that are meant to be majestic and elegant. These systems offer fronts with 90mm and 114mm round posts. The posts can be finished with a wide range of discs and decorative balls from galvanized, painted through stainless steel to brass. Fronts can additionally be equipped with decorative stripes and hammer-painted by putting a layer of powder paint on the hot-dip galvanized structure. This gives an extraordinary visual effect and at the same time incredible durability. All Remtor fronts can be modified and customized according to individual needs.
Round columns 114,3mm; tubes ½” (21,3 mm)
Galerie

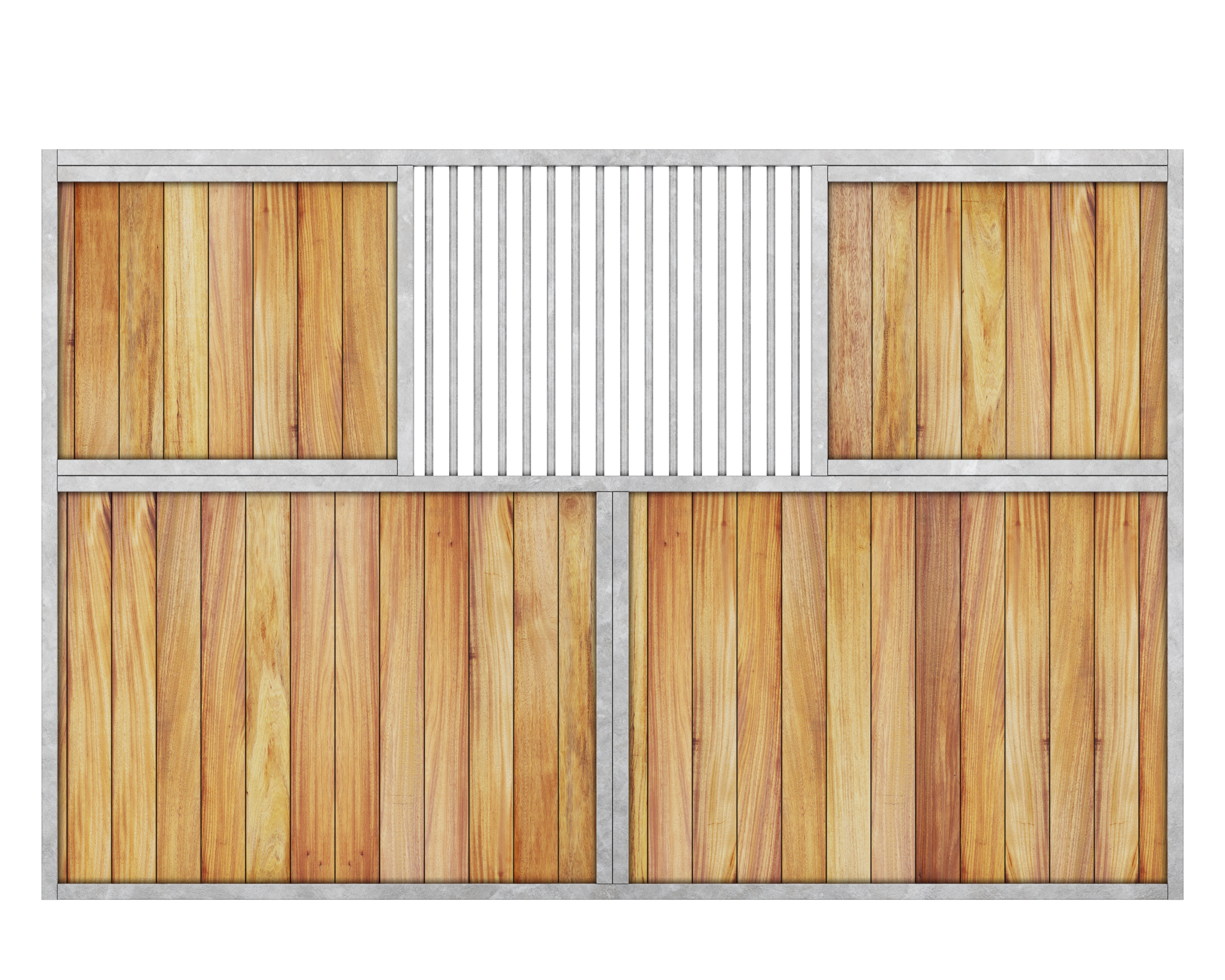

Partition walls
Posts 50×50 mm; tubes ½” (21,3 mm)

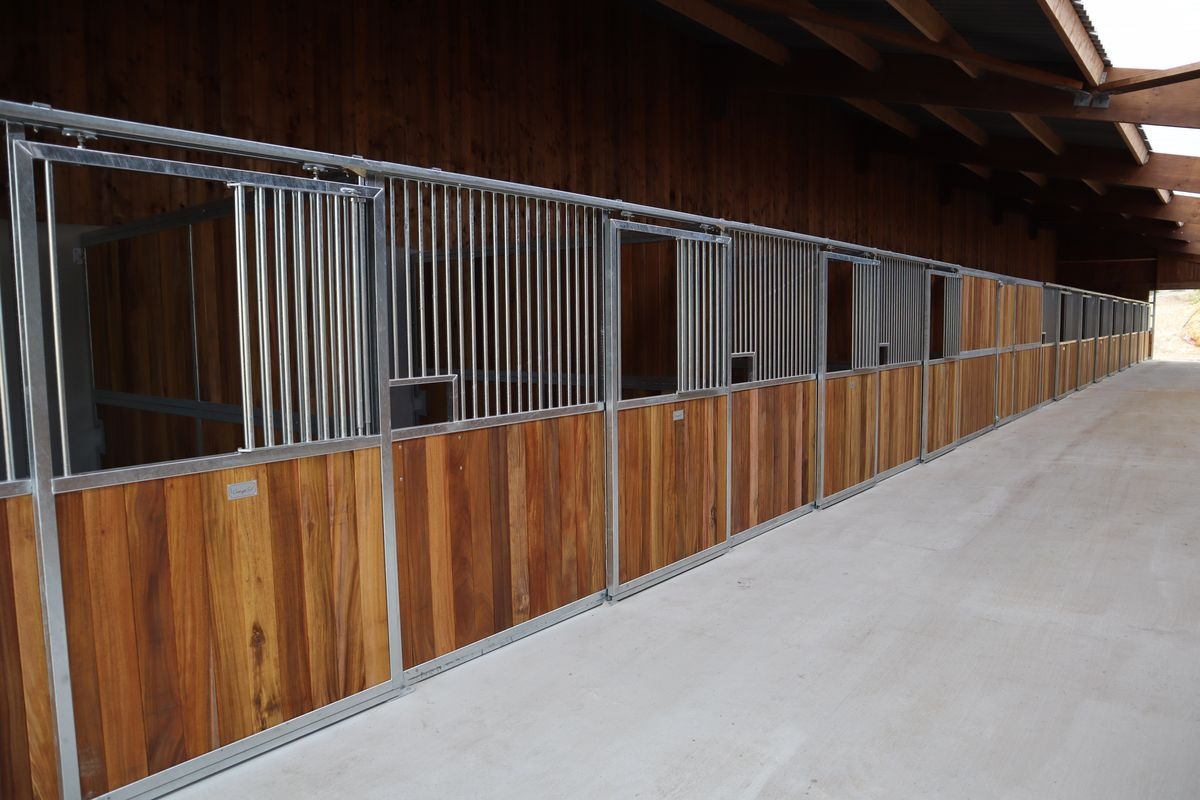

Internal stable fronts
Posts 50×50 mm
Tubes ½” (21,3 mm)
Posts 80×80 mm
Tubes ½” (21,3 mm)
Round columns 90
Tubes ½” (21,3 mm)
Round columns 114,3 mm
Tubes ½” (21,3 mm)
Remtor’s mission is to manufacture stable equipment that prioritizes comfort, safety, and professionalism. Therefore, our products are produced in compliance with the safety standards established by German horse breeders. To ensure maximum safety for horses, the front panels should have a height of 230cm, and the tubes should possess a diameter of either ½” (21.3mm) or ¾” (26.9mm), with a spacing between tubes of 50mm. It is important to avoid larger gaps, as they can pose a risk to horses.
When designing our stalls, we emphasize both durability and comfort. It is crucial to bear in mind that stalls should be replaced every 30 years, a factor to consider during the design process. We have developed a convenient opening and closing system for our front panels, aiming to enhance durability and facilitate easy and efficient operation. This system incorporates a sturdy “heavy-duty” rail, providing rigidity and strength to ensure smooth movement of the trolleys. Each trolley is equipped with four rollers, resulting in a total of eight rollers for each pair of doors. While this may seem excessive, it is necessary to ensure seamless and effortless sliding of the doors. The inclusion of a brass slide and a specialized tube end enables easy and quiet door closure, while the special plastic handle prevents finger pinching during opening. With this system, you can expect years of pleasant and comfortable usage of our front panels.
All our front panels and partitions are customizable, with adjustable lengths ranging from 2m to 4m. Our product offering includes decorative elements and additional equipment that allows you to personalize the elements according to your specific needs. Among the available options are decorative horizontal boards and balls, a rotating manger, powder coating, a cabinet, and a built-in feeder. With our extensive range of choices, you will find the perfect fit for your requirements.
Technical Details
Standard height: 2,30 m
Profile thickness 50 mm
Grille 1⁄2 ” (21.3 mm) with grille spacing 50 mm (alternatively 3⁄4″ (26.9 mm)
Board height 1,30 m
The sliding door is equipped with a solid guide rail with a wall thickness of 3.5 mm and two very high quality trolleys with 4 ball bearing rollers each.
Sliding door or pivot door with a swing-open hatch in the grille
Automatic lock on sliding doors and additional bottom protection on opening doors
Special C-Profile
Feeding option with hatch or pivoting frame
Hot-dip galvanised or powder coated
Various wood fillings 32 mm or 38 mm thick
Air vents in the boards
Decorative horizontal boards
On request we also make heights suitable for ponies and stallions
Bar lock with compression spring pre-tension for secure locking of the sliding door
Entry foot for rod lock made of very solid cast brass for highest loads
Front and partition walls as well as all accessories can be designed and built according to your wishes
Infills
BOARDS
PVC Boards

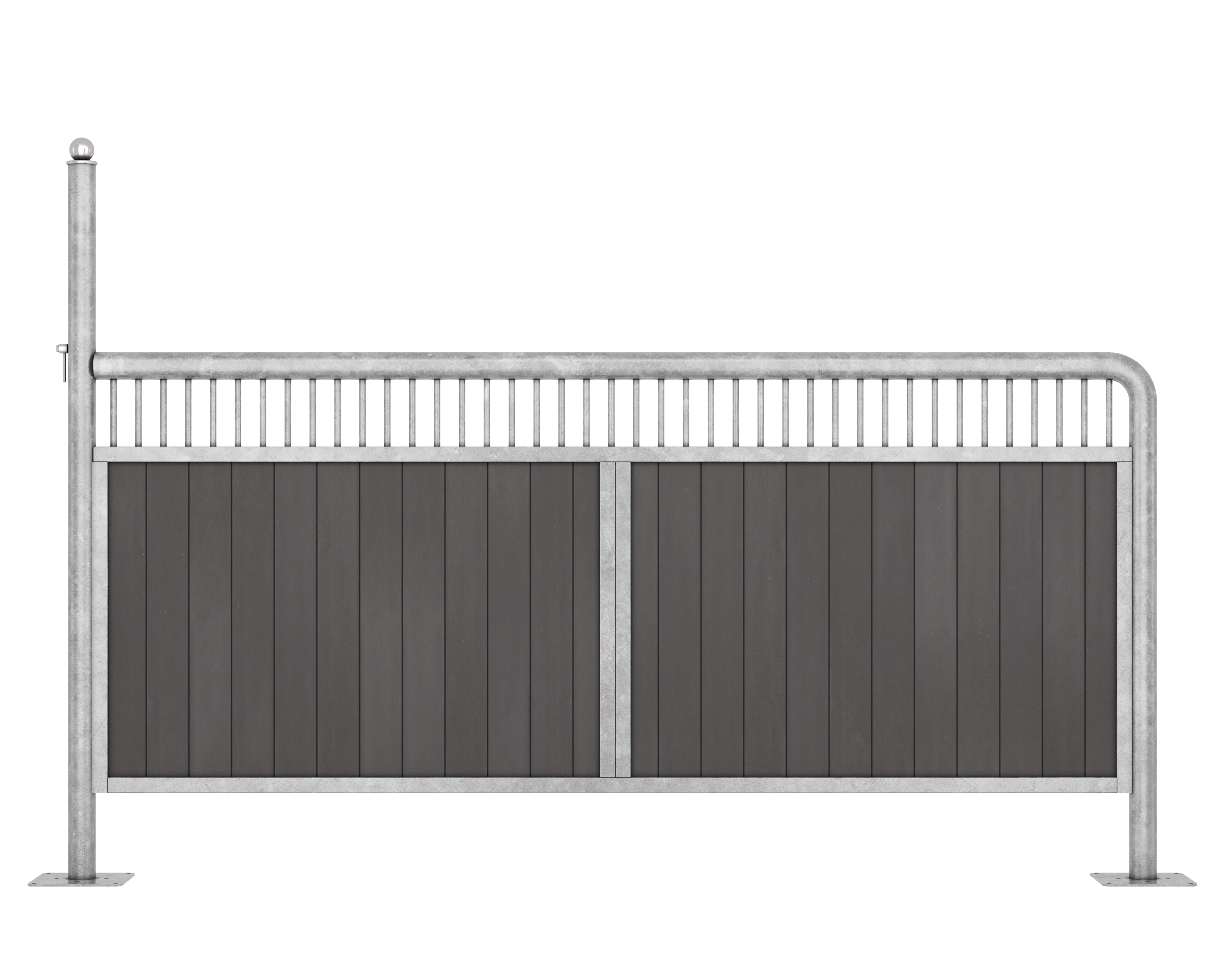

Washing area partition
All fronts are available with options of decorative wooden horizontal planks, powder coating, rotating manger or decorative balls.
Easy Cleaning
The easy cleaning system was designed to facilitate manure removal. We offer various solutions for different types of horse barns, so that everyone is able to find a solution that is ideal for their specific needs:
- partitions with a track and roller system allowing the wall to be pulled out into the aisle,
- swing partition walls,
- front walls which open out as a single element or two elements.
What measurements should a single stable have
Withers Height (WH x 2, squared (Wh x 2)2
Example: Horse with 1,68m withers: (1,68m x 2)2 = 11,29 m2
A stable 3.00 m x 3.00 m is too small for such a horse!
| THE MINIMUM DIMENSIONS OF THE SIZE OF THE STALL ON THE EXAMPLE OF DIFFERENT HEIGHTS OF THE HORSE AT THE WITHERS (THE INFORMATION IS IN ACCORDANCE WITH THE GUIDELINES ON HOW TO BREED HORSES) | 1,48 m | 1,68 m | 1,75 m | |
|---|---|---|---|---|
| STALL AREA (M2) FOR ONE HORSE | ≥ (Wh x 2)2 | 8,76 | 11,29 | 12,25 |
| STALL AREA (M2) FOR A MARE WITH FOAL | ≥ (Wh x 2,3)2 | 11,59 | 14,93 | 16,20 |
| MINIMUM LENGTH (M) OF THE SHORTER SIDE OF THE BOX | ≥ 1,75 x Wh | 2,59 | 2,94 | 3,06 |
| HEIGHT OF PARTITION WALL (M) WITH GRID | ≥ 1,3 x Wh | 1,92 | 1,92 | 2,28 |
| AREA (M2) OF THE PADDOCK | ≥ (Wh x 2)2 | 8,76 | 11,29 | 12,25 |
Create a friendly and comfortable bedroom for your horses – only with quality internal stables from Remtor
Our objective is to develop horse accommodations that prioritize ample freedom of movement for the animals. Simultaneously, our structures are designed to ensure maximum safety for both the animals and the caretakers. When creating an optimal internal stable, we place great emphasis on customizing it to meet the specific needs of the horses and provide them with comfortable conditions. Consequently, meticulous attention should be given to the appropriate dimensions and the choice of materials employed in their construction. Our competent team is readily available to offer guidance and assist you in preparing a suitable design that takes into careful consideration the aforementioned factors.
The highest quality of every stable, from hinges to wooden partitions
The horse stables we design feature sliding lock doors, wooden partitions, windows, and ventilation systems. Every component of our internal stables is meticulously crafted to ensure the absence of sharp or protruding objects, thereby creating a space that is completely safe for animals and minimizing the risk of injuries. The constructions are sturdy and durable, capable of withstanding even instances of equine panic without causing damage to the stable interior. Additionally, we offer various options for entrance and window systems, allowing our customers to customize them according to their specific needs and preferences. However, above all else, our utmost priority lies in ensuring that the structure of each stable project eliminates any possibility of accidental openings, such as those caused by a horse’s kick. When it comes to the safety of our horses, we do not make any compromises.
Impressive design and timeless elegance – functional and stylish internal stable
Displayed at the top of the page are a range of internal stable models produced by our factory. Each project embodies the distinctive qualities associated with the Remtor brand – top-notch quality, meticulous attention to detail, and a unique, timeless design. With an extensive array of options for front panels, posts, bars, and partitions, you have the freedom to design every aspect of the stalls according to your preferences and tailor the entire internal stable to suit individual requirements. Furthermore, our products offer exceptional flexibility, enabling the height of the profiles to be adjusted to accommodate the specific breed housed within the stable.
